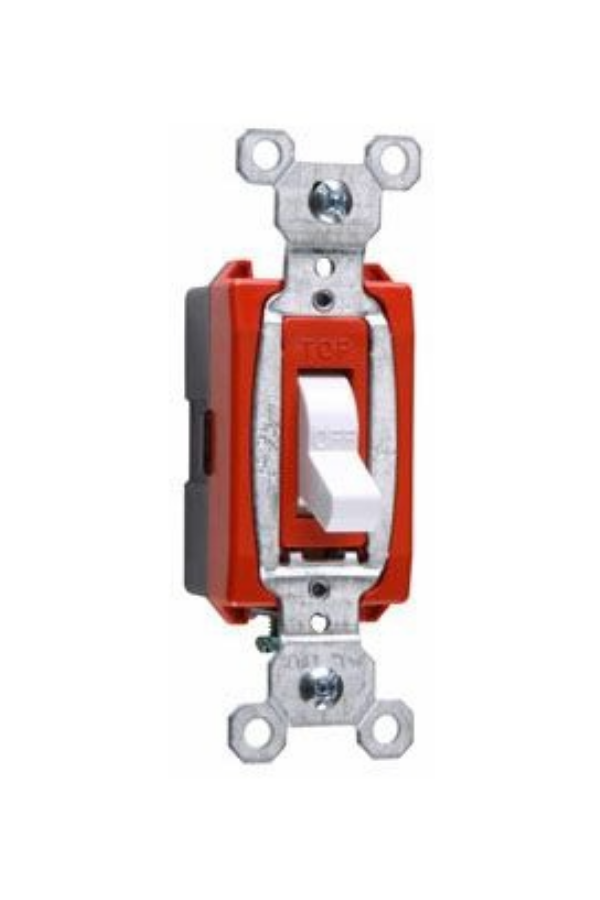

Switch - Single Pole - 20A - White

Toggle Type; Glass Reinforced Nylon (Back Body), Nylon (Front Body), Thermoplastic Polycarbonate (Toggle) Material; 1.32 Inch Width X 1.073 Inch Depth Size; White Color; 1-Pole Operation Type; UL 498/20, UL (Canada and Us), CSA C22.2, FSUL WS896 Approval; Commercial, Retail, Office, Hospitality/Lodging, Multiple Dwelling Application; 120/277 Volt AC Voltage Rating; 20 Amp Current Rating; 1 HP at 120 Volt AC, 2 HP at 240 Volt AC Power Rating; Side Wiring; No Wall Plate Included; Grade Specification; Wire Size 14 to 10 AWG Copper; Temperature Rating -40 to 115 Deg C; Flammability Rating UL 94 V-2; Includes Brass Terminal/Spring Arm, Brass Plated Steel Terminal Screw, Plated Steel Strap, Silver Cadmium Oxide Contact, Rubber Bumper, Zinc Plated Steel Spring; Applicable Standard NEMA Wd-1/Wd-6; CS20AC1 Model

Details
Purchase or Ship: Purchase
Ship Time (Days): 1-2
Dimensions (L x W x H): 4.25 x 2 x 1.5
Weight: 0.10 lb
